Electro-Harmonix Switchblade+ Channel Selector Footswitch

Electro-Harmonix Switchblade+ Channel Selector Footswitch Review

Electro-Harmonix Switchblade+ Channel Selector Footswitch Feature

• Route your signal to output A or output B or both simultaneouslyEasily switch between different pedal boardsThe tuner jack is hardwired to the input jack and provides a direct output for a tuner or other effects regardless of the state of the unitThe audio path is completely passiveThe Switchblade Plus can be powered by a 9 volt battery or 9VDC eliminator

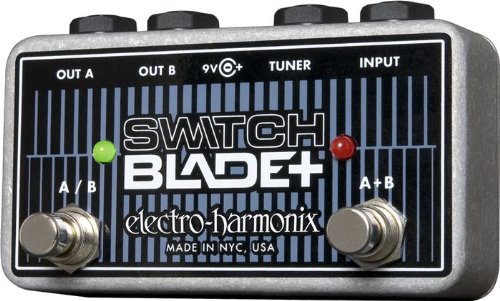

The Switchblade+ offers a convenient solution to a players switching needs. Route your signal to either output A or B, or send it to both at once. Connect a tuner or effects pedal to its dedicated Tuner output. With a fully passive audio path and active LED indication, the new Switchblade+ is your utilitarian sidekick. Controls A/B Footswitch (LED) Press this switch to route the input signal to either OUT A (Red LED) or OUT B (Green LED).A+B Footswitch (LED) Press this switch to route the input signal to both OUT A and OUT B. When A+B is engaged (Red LED), the A/B Footswitch has no effect on the signal path. I/O INPUT Connect the output of your instrument or another effects pedal to this jack.TUNER Connect this jack to the input of a tuner device or another effects pedal. This jack is hardwired to the INPUT jack and provides a direct output regardless of the state of the unit.OUT A Connect this jack to the input of an amplifier or the input of another effects pedal. Depending on the state of the A/B and A+B controls, this jack will output either the direct input signal or no signal. When the A/B LED is lit red or the A+B LED is lit up, OUT A is selected.OUT B Connect this jack to the input of an amplifier or the input of another effects pedal. Depending on the state of the A/B and A+B controls, this jack will output either the direct input signal or no signal. When the A/B LED is lit green or the A+B LED is lit up, OUT B is selected. Power -The SWITCHBLADE+ can be powered by a 9V battery or a 9VDC battery eliminator capable of delivering at least 16mA. The optional 9V power supply from Electro-Harmonix is 9.6DC-200BI (same as used by Boss & Ibanez) 9.6 Volts DC 200mA. The power supply must have a barrel connector with center negative.The SWITCHBLADE+ can also operate without power, since the audio path is fully passive. With no power, however, the LED indication will not function.When A+B is engaged, the input impedance at the INPUT jack is equal to 50k in paral
